| Student Compound Microscope |
 |
Education to Teaching Use |
|
| Body |
Monocular Tube, inclinable upto 90-degrees,
length 160mm. |
| Nosepiece |
Triple revolving nosepiece with accurate centering
and positive click stops. |
| Stage |
Fixed square stage of 120x120mm with stage
clips & fixed iris diaphragm. |
| Illumination |
Plano-Concave 50mm adustable mirror on gimble
mount. |
| Objectives |
Achromatic 10X & 40X. |
| Eyepieces |
Huygenian 5X-10X-15X (any two) or Wide field
10X. |
|
|
 |
| Model RM-2 |
|
|
|
| |
| Student Compound Microscope |
|
Education to Teaching Use |
|
| Body |
Monocular Tube, inclinable upto 90-degrees, length
160mm. |
| Nosepiece |
Triple revolving nosepiece with accurate centering
and positive click stops |
| Stage |
Fixed square stage of 120x120mm with stage clips. |
| Illumination |
Plano-Concave 50mm adustable mirror on gimble mount. |
| Objectives |
Achromatic 10X & 40X. |
| Eyepieces |
Huygenian 5X-10X-15X (any two) or Wide field 10X. |
| Standard Optical Combinations |
| Model |
Condenser |
Eyepieces (AnyTwo) |
Objectives |
Magnification |
| RM-2 |
Iris
Diaphragm |
5X,
10X, 15X |
10X-40X |
50X-600X |
| RM-2A |
Fixed
Condenser |
5X, 10X, 15X |
10X-40X |
50X-600X |
| RM-2B |
Moveable
Condenser |
5X,
10X, 15X |
10X-40X
SL |
50X-600X |
|
|
 |

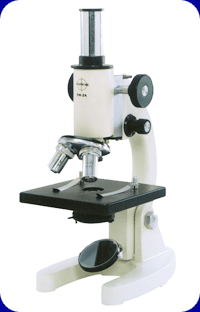

| Model RM-2A |
|
|
| |
| Student Projection Microscope |
|
Elementary to Teaching Use |
|
| Body |
Monocular Fixed Straight Tube, length 160mm. |
| Nosepiece |
Triple revolving nosepiece with accurate centering and positive click stops |
| Stage |
Detachable Mechanical stage for X-Y cross movement 50X75mm, fully graduated vernier scale. |
| Illumination |
20W halogen lamp, 220/110Volts. Lamp slots provided for natural cooling of the illuminator. |
| Objectives |
Achromatic 5X - 10X- 45XSL. |
| Eyepieces |
Huygenian 10X and 15X |
| Screen |
150mm diameter Glass Projection Screen is provided, can be rotated over 360-degrees on Microscope tube. |
| Model PRM-11 |
All specifications are as per PRM-11A but has only 2 Objectives 10X & 45X. Screen size 100mm and without mechanical stage. |
|
 |
| Model PRM-11A |
|
|
| |
| Student Stereo Microscope |
|
Education to Research Use |
|
| Observation Head |
Binocular
head inclined at 45-deg., rotated through 360-deg
with adjustable inter-pupillary distance. |
| Focussing |
By Rack and Pinion mechanism with adjustable tension
collar. |
| Magnification |
Standard magnification 20X & 40X with flat field. |
| Illumination |
With integral illuminator, 2 lamps are fitted to
provide both transmitted and incident illumintation. |
| Objectives |
2 sets of objectives 2X and 4X, selected by rotating
nosepiece through 90-degrees. |
| Eyepieces |
Standard extra wide field eyepieces WF-10X is provided.
Optional WF-15X & WF-20X. |
|
 |
| Model RSM-4 |
|
|
|
| |
|
| Student Medical Microscope |
|
Education to Medical Use |
|
|
| Stand |
Stable and Robust, assembled from Aluminium DIE-CAST parts. |
| Nosepiece |
Quadruple nosepiece with accurate centering and positive click stops |
| Stage |
Detachable horizontal graduated mechanical stage size 120 X 120mm with adjustment for slide manipulation upto 45 x 75mm. |
| Illumination |
Plano-Concave 50mm adjustable mirror on gimble mount. Interchangeable with sub-stage illuminator (Optional). |
| Objectives |
Achromatic 10X, 40XSL and 100 XSL Oil immersion. |
| Eyepieces |
Huygenian 5X-6X-10X-15X (Any two) or WF 10X. |
|
 |
| Model RM-3 |
|
|
| |
|
| Classroom Microscope |
|
Education to Training Use |
|
| The structure of Microscopic specimens become visible to naked eyes by taking the projection on the screen. Recommended for Educational purposes. |
| Magnification |
100x, 200x and 300x |
| Focussing |
Coarse & Fine Motion Knobs on both sides. |
| Projection Head |
360º Rotatable |
| Light Source |
24V-150W (220V/110V). |
| Cooling |
Fan cooled. |
|
 |
| Model RP-88 |
|
|
| |
|
