Monocular Research Microscope |
|
Routine to Research Use |
|
|
|
Observation Head
|
45-degrees inclined monocular head rotatable through 360-degrees. |
Nosepiece
|
Quadruple nosepiece with accurate centering
and positive click stops |
Stage
|
Built in graduated mechanical stage of 135x120mm. Low coaxial
drive controls for easy and smooth scan of specimen slides. |
Illumination
|
6V-20W halogen lamp, 220/110Volts. Mirror attachment for working
in day light |
Objectives
|
Achromatic 4X - 10X- 40X SL and 100X SL Oil immersion |
Eyepieces
|
Wide field WF 10X and H5x or H6X or H15X (any two pairs) |
|
|
Model RMH-4
|
|
|
|
|
Binocular Research Microscope |
|
Routine to Research Use |
|
|
Observation Head
|
45-degrees inclined Binocular head rotatable through 360-degrees. |
Nosepiece
|
Quadruple nosepiece with accurate centering and positive click
stops |
Stage
|
Built in graduated mechanical stage of 135x120mm. Low coaxial
drive controls for easy and smooth scan of specimen slide over
range of 50x75mm |
Illumination
|
6V-20W halogen lamp, 220/110Volts and mirror attachment for working
in day light |
Objectives
|
Achromatic 4X - 10X- 40X SL and 100X SL Oil immersion |
Eyepieces
|
Wide field WF 10X and H5x or H6X or H15X (any two pairs) |
|
|
Model RMH-4B
|
|
|
|
Binocular Research Microscope |
|
Routine to Research Use |
|
|
Observation Head
|
45-degrees inclined Binocular head rotatable through 360-degrees. |
Nosepiece
|
Quadruple nosepiece with accurate centering and positive click
stops |
Stage
|
Built in graduated mechanical stage of 135x120mm. Low coaxial
drive controls for easy and smooth scan of specimen slide over
range of 50x75mm |
Illumination
|
6V-20W halogen lamp, 220/110Volts and mirror attachment for working
in day light |
Objectives
|
Achromatic 4X - 10X- 40X SL and 100X SL Oil immersion |
Eyepieces
|
Wide field WF 10X and H5x or H6X or H15X (any two pairs) &
P7X |
|
|
Model RMH-4T
|
|
|
|
|
|

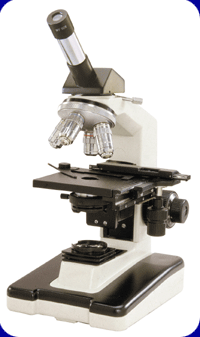

Monocular Research Microscope |
|
Routine to Research Use |
|
|
Observation Head
|
45-degrees inclined Monocular head rotatable through 360-degrees. |
Nosepiece
|
Quadruple nosepiece with accurate centering and positive click
stops |
Stage
|
Built in graduated mechanical stage of 135x120mm. Low coaxial
drive controls for easy and smooth scan of specimen slide over
range of 50x75mm |
Illumination
|
6V-20W halogen lamp, 220/110Volts and mirror attachment for working
in day light |
Objectives
|
Achromatic 4X - 10X- 40X SL and 100X SL Oil immersion |
Eyepieces
|
Wide field WF 10X and H5x or H6X or H15X (any two pairs) &
P7X |
|
|
Model RXL-4
|
|
|
|
Coaxial Binocular Research Microscope |
|
Medical to Research Use |
|
|
Observation Head
|
45-degrees inclined Binocular head rotatable through 360-degrees. |
Nosepiece
|
Quadruple nosepiece with accurate centering and positive click
stops. |
Stage
|
Mechanical stage of 135x120mm. Low co-axial drive controls for
X-Y movement and cross movement 50X75mm, fully graduated vernier
scale. |
Illumination
|
6V-20W halogen lamp, 220/110Volts and mirror attachment for working
in day light. |
Objectives
|
Achromatic DIN 4X - 10X- 40X SL and 100X SL Oil immersion |
Eyepieces
|
DIN Size Wide field WF 10X and H5x or H6X or H15X (any two pairs). |
|
|
Model RXL-4B
|
|
|
|
|
|

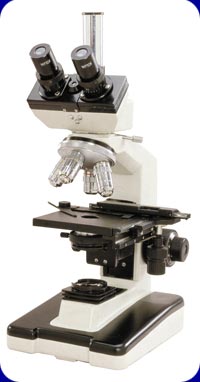

Trinocular Research Microscope |
|
Medical to Research Use |
|
|
Observation Head
|
45-degrees inclined Trinocular head rotatable through 360-degrees. |
Nosepiece
|
Quadruple nosepiece with accurate centering and positive click
stops. |
Stage
|
Mechanical stage of 135x120mm. Low co-axial drive controls for
X-Y movement and cross movement 50X75mm, fully graduated vernier
scale. |
Illumination
|
6V-20W halogen lamp, 220/110Volts and mirror attachment for working
in day light. |
Objectives
|
Achromatic DIN 4X - 10X- 40X SL and 100X SL Oil immersion |
Eyepieces
|
DIN Size Wide field WF 10X and H5x or H6X or H15X (any two pairs). |
|
|
Model RXL-4T
|
|
|
|
|

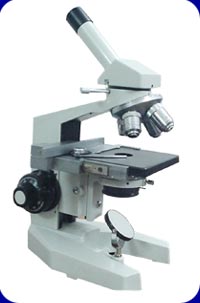

Monocular Research Microscope |
|
Education to Research Use |
Observation Head
|
45-degrees inclined Monocular head rotatable through 360-degrees. |
Nosepiece
|
Quadruple nosepiece with accurate centering and positive click
stops |
Stage
|
Built in graduated mechanical stage of 135x120mm for easy and
smooth scan of specimen slide over range of 50x75mm |
Illumination
|
Mirror on horse shoe base for working in day light |
Objectives
|
Achromatic DIN Size 4X - 10X- 40X SL and 100X SL Oil immersion |
Eyepieces
|
DIN Size Wide field WF 10X and H5X or H6X or H15X (any two). |
|
|
Model RXL-5(A)
|
|
|
|
|

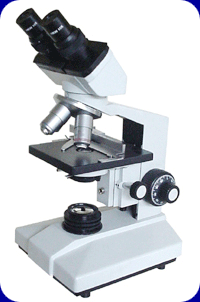

Binocular Research Microscope |
|
Education to Research Use |
|
|
Observation Head
|
45-degrees inclined Binocular head rotatable through 360-degrees. |
Nosepiece
|
Quadruple nosepiece with accurate centering and positive click
stops |
Stage
|
Built in graduated mechanical stage of 135x120mm for easy and
smooth scan of specimen slide over range of 50x75mm |
Illumination
|
6V-20W halogen lamp, 220/110Volts. Mirror attachment for working
in day light |
Objectives
|
Achromatic DIN Size 4X - 10X- 40X SL and 100X SL Oil immersion |
Eyepieces
|
DIN Size Wide field WF 10X and H5X or H6X or H15X (any two). |
|
|
Model RXL-5B
|
|
|
|
|
|
Trinocular Research Microscope |
|
Education to Research Use |
|
|
Observation Head
|
45-degrees inclined Trinocular head rotatable through 360-degrees. |
Nosepiece
|
Quadruple nosepiece with accurate centering and positive click
stops |
Stage
|
Built in graduated mechanical stage of 135x120mm for easy and
smooth scan of specimen slide over range of 50x75mm |
Illumination
|
6V-20W halogen lamp, 220/110Volts. Mirror attachment for working
in day light |
Objectives
|
Achromatic DIN Size 4X - 10X- 40X SL and 100X SL Oil immersion |
Eyepieces
|
DIN Size Wide field WF 10X and H5X or H6X or H15X (any two).
P7X for photomicrography. |
|
|
Model RXL-5T
|
|
|
|
|
|
|
|
