Dissecting Microscope
|
 |
Elementary to Teaching Use
|
|
|
|
Base
|
Heavy round base with precisely designed body. |
Focussing
|
Sensitive focussing, done by rack and pinion arrangement.
Revolving arm provided for moving magnifying lens
over full stage area. |
Stage
|
85mm x 75mm with glass plate. |
Illumination
|
A plano-concave lens fitted in fork for light reflection. |
Optics
|
10x & 20x Eyepieces
|
|
 |
Model RDM-2
|
|
|
|
|
Senior Dissecting Microscope
|
|
Elementary to Teaching Use
|
|
|
Base
|
Heavy
round base with precisely designed body. |
Focussing
|
Sensitive focussing, done by rack and pinion arrangement.
Revolving arm provided for moving magnifying lens
over full stage area. |
Stage
|
100mm x 100mm with glass plate. |
Illumination
|
A plano-concave lens fitted in fork for light reflection. |
Optics
|
10x & 20x Eyepieces & special Bull Eye Lens
83mm diameter. |
|
 |
Model RDM-4
|
|
|
|
|
Student School Microscope
|
|
Elementary to Teaching Use
|
|
|
Observation Head
|
Monocular
straight fixed tube. |
Stage
|
Fixed square stage size 75 x 85mm with stage clips. |
Illumination
|
Plano-Concave mirror diameter 25mm mounted on gimble
mount. |
Objectives
|
Achromatic 10X. |
Eyepieces
|
Huygenian 10X and 15X. |
|
 |
Model RM-1
|
|
|
|
|

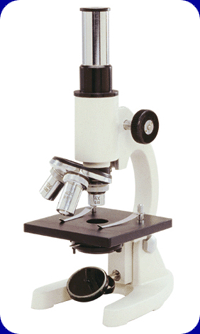

Student School Microscope
|
|
Elementary to Teaching Use
|
|
|
Observation Head
|
Monocular Tube inclinable upto 90 degrees, Mechanical
tube length 160mm. |
Nosepiece
|
Nosepiece
Triple revolving nosepiece with positive centring
& click stops. |
Stage
|
Fixed
square stage size 100 x 100mm with stage clips. |
Illumination
|
Plano-Concave
mirror diameter 38mm mounted on gimble mount. |
Objectives
|
Achromatic 4X - 10X- 40XSL. |
Eyepieces
|
Huygenian
10X and 15X. |
Model RM-1C
|
All specifications same as RM-1B, but with inclined
eyepiece tube for comfortable & convenient observation. |
Model RM-1A
|
All specifications same as RM-1B, but with single
10X objective and without fitting of a Nosepiece. |
|
 |
Model RM-1B
|
|
|
|
|

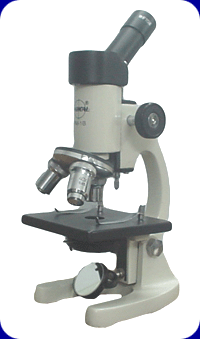

School Microscope
|
|
Elementary to Teaching Use
|
|
Observation Head
|
Mechanical tube length 160mm, fitted
with an inclined Observation Tube
for comfortable & convenient observation. |
Nosepiece
|
Nosepiece
Triple revolving nosepiece with positive
centring & click stops. |
Stage
|
Fixed
square stage size 100 x 100mm with stage
clips. |
Illumination
|
Plano-Concave
mirror diameter 38mm mounted on gimble
mount. |
Objectives
|
Achromatic 4X - 10X- 40XSL. |
Eyepieces
|
Huygenian
10X and 15X. |
|
 |
Model RM-1C
|
|
|
|
|
|
Student Stereo Microscope
|
|
Elementary to Teaching Use
|
|
|
Observation Head
|
Straight
Binocular head with interpupillary adjustment &
hand grip. |
Stage
|
Stage with clips and reversible black & white
plate. |
Objectives
|
Fixed Achromatic Objectives 2X or 3X. |
Eyepieces
|
Widefield Eyepiece WF 10X or 15X. |
Optional
|
Available with different stands and dioptre adjustments. |
|
 |
Model RSM-1
|
|
|
|
|
